Understanding Fire Alarm Categories According to BS 5839-1:2017

10/7/20242 min read

a close up of a red fire hydrant
a close up of a red fire hydrant

Introduction to Fire Alarm Categories

The importance of fire safety cannot be overstated, especially in commercial and residential buildings. BS 5839-1:2017 serves as the guiding standard for the design, installation, and maintenance of fire alarm systems in the United Kingdom. This comprehensive guideline delineates various categories of fire alarm systems, each tailored to specific needs and environments. In this article, we will explore these categories, shedding light on their distinctive features and applications.

Categories of Fire Alarm Systems

BS 5839-1:2017 outlines several categories of fire alarm systems, each classified based on the level of protection they provide and the environment in which they are installed. Below are the primary categories:

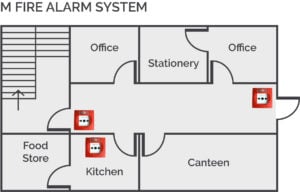

Category M: This category refers to manual systems, where the detection of fire relies entirely on human intervention. While these alarms may not provide automatic alerts, they are essential in smaller buildings or locations where automatic systems are impractical.

Category L: Systems under this category are designed to provide life safety in case of fire. They are subdivided into different levels, such as L1, L2, L3, and L4, which represent varying degrees of coverage throughout the premises. For instance, L1 requires the installation of detection systems throughout the building, ensuring maximum protection.

  • L1 provides for Automatic Fire Detection (AFD) to be installed in all areas of the building.

  • L2 provides Automatic Fire Detection (AFD) as defined in L3 as well as high risk or hazardous areas. Examples of this could be Kitchens, boiler rooms, sleeping risk, storerooms if not fire resistant or if smoke could affect escape routes.

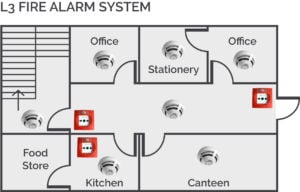

  • L3 Automatic Fire Detection (AFD) with smoke detection should be installed on escape routes with detection in rooms opening onto escape routes.

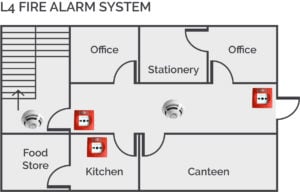

  • L4 provides Automatic Fire Detection (AFD) within escape routes only.

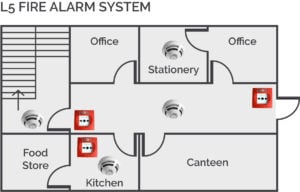

  • L5 is installed in a building with a specific risk that has been identified. An example of this would be if there isan area of high risk that requires detection, such as a kitchen or boiler room.

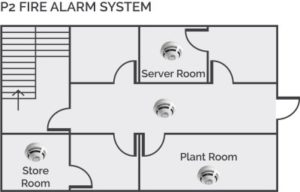

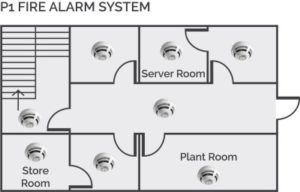

Category P: In contrast to the L categories focused on life safety, the P category systems are intended to protect property. Similar to the L category, this classification also includes subdivisions (P1 and P2) that indicate the extent of coverage, from comprehensive protection (P1) to a more conventional approach (P2) focusing on specific areas.

Importance of Selecting the Right Category

Choosing the appropriate fire alarm category is crucial for ensuring safety and compliance with legal regulations. A poorly chosen system could lead to inadequate detection and could result in severe consequences in case of a fire. Factors such as building size, usage, and occupancy must be carefully considered when selecting a fire alarm system.

Engaging professional fire safety consultants during the planning phase can greatly assist building owners in identifying the best category for their specific circumstances. These experts can also ensure that installations are made according to BS 5839-1:2017 standards, enhancing the effectiveness of the fire alarm system.

Conclusion

In summary, understanding the fire alarm categories delineated in BS 5839-1:2017 is imperative for establishing a reliable fire safety strategy. Building owners and managers must familiarize themselves with these classifications to ensure compliance, safety, and protection against potential fire hazards. Regular assessments and re-evaluations of the fire alarm systems in place also contribute to maintaining a safe environment for all occupants. In light of these considerations, investing in expert advice and adhering to standards will pave the way for robust fire safety practices.
